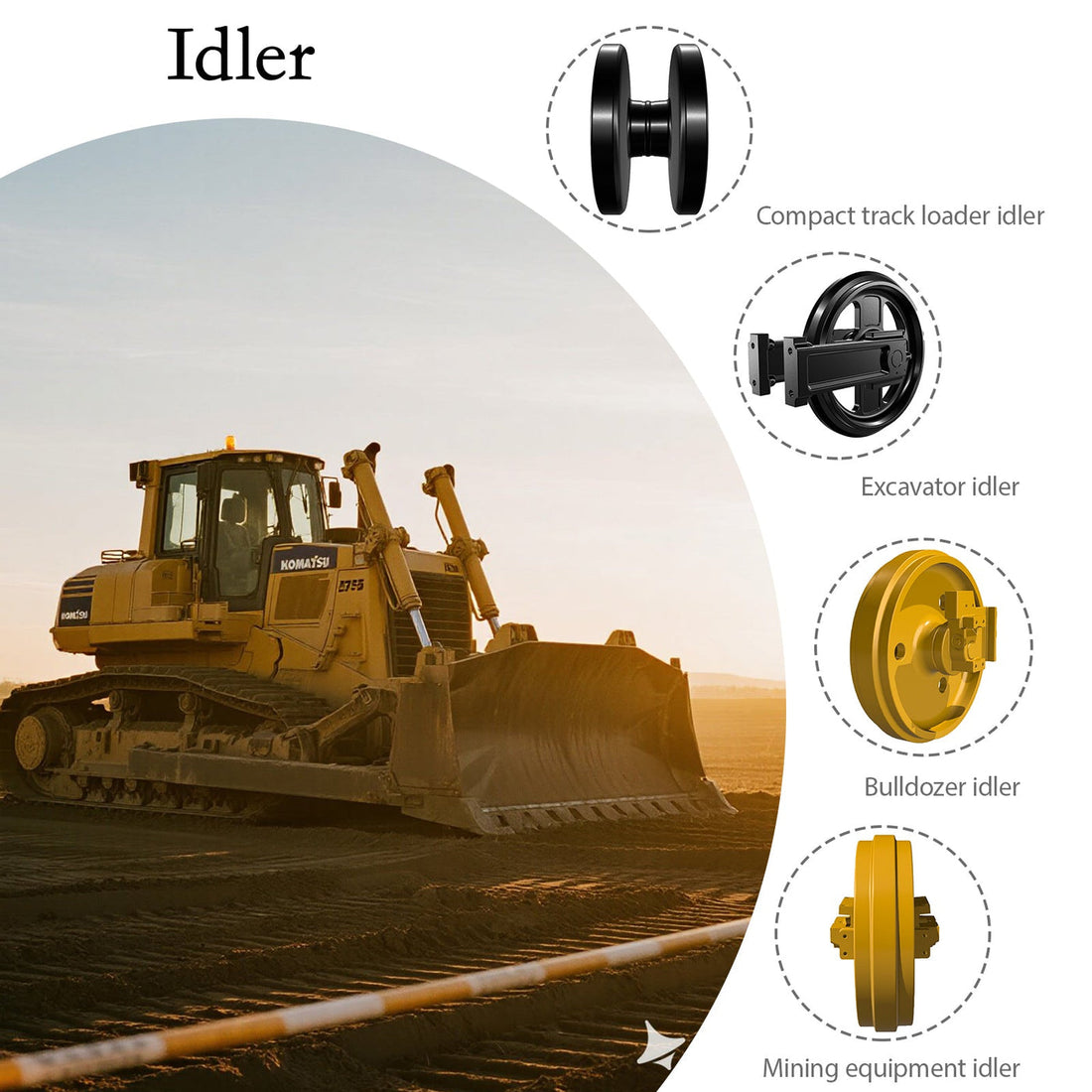

Front Idler Seals and Bearings Help Decide Between Rebuild and Replacement
Share
A front idler that still turns may already have worn seals or bearing support inside the assembly. Grease around the shaft, side-to-side movement, unusual noise, or uneven flange wear creates a practical decision: should the idler receive new seals and bearings, or has wear progressed far enough to justify replacing the complete unit? The answer depends on the condition of the shaft journals, internal bearing surfaces, shell, flanges, and mounting areas—not on leakage alone. Before disassembly, identify the machine model and serial number, consult the current OEM parts catalog and service manual, and confirm the required part numbers, clearances, lubrication procedure, and safety steps for that exact undercarriage configuration.
How front idler seals and bearings work
The front idler guides the track chain around the front of the undercarriage and helps maintain track alignment. Inside the assembly, bronze bushings, bearings, or other shaft-supporting components control rotation and load transfer according to the idler design. Internal seals retain the specified lubricant while limiting the entry of water, mud, and abrasive debris.
This support system affects more than lubrication retention. As a bearing surface wears, the shaft may move within the idler shell. That movement can damage the sealing surfaces, increase friction, and alter the way the track chain contacts the idler flanges.
A seal and bearing service may suit an idler with limited contamination and serviceable structural surfaces. It may be unsuitable for an assembly with severe shaft scoring, cracked housing material, excessive shell or flange wear, or distorted mounting areas.
Front idler failure signs worth inspecting
Grease weeping around the idler shaft or seal area is a common reason for inspection. It does not, by itself, identify the failed component. Contamination, damaged sealing faces, incorrect assembly, internal movement, or an unsuitable lubricant can produce a similar external symptom.
Side-to-side play or visible wobble during controlled track movement deserves closer attention, especially when it appears with noise or uneven wear. A worn bushing or bearing surface may permit shaft movement that loads the seal unevenly and shifts the idler relative to the track chain.
Other indicators include squealing, unusual friction-related heat, repeated lubricant loss after a prior service, and accelerated or uneven wear on the idler flanges. Track-chain wear, debris packing, track tension, frame alignment, and neighboring undercarriage wear can also contribute to these conditions. Inspection results should be compared with the limits and procedures in the applicable OEM manual.
Failure and limitation analysis
A new seal does not restore a damaged shaft journal or correct a distorted housing. If the shaft continues moving because its support surface is worn, the replacement seal may experience abnormal loading and the visible leak may return.
The same limitation applies to a rebuilt idler installed into a worn undercarriage. Excessive chain wear, incorrect track tension, damaged mounting surfaces, or alignment problems may transfer abnormal loads into the serviced assembly. A component-level repair therefore needs a system-level inspection.
A repeated failure after seal or bearing replacement deserves a broader diagnosis. Check whether the selected parts match the machine’s serial range, whether the shaft and housing were measured against the applicable limits, whether contamination entered during assembly, and whether another undercarriage component is creating the original load or alignment problem.
Rebuild or replace the complete idler
Rebuilding is more reasonable when contamination was identified early, shaft journals remain within the relevant OEM limits, and the shell, flanges, housing, and mounting areas are structurally sound. The internal support components must also be available in the correct configuration.
Complete idler replacement deserves consideration when the assembly has damage that new seals and bearings cannot correct. Severe shaft scoring, a cracked housing, shell wear beyond the allowable limit for that design, or deformed mounting blocks can change alignment and sealing conditions.
| Inspection condition | Likely direction | Reason for the decision |
|---|---|---|
| Limited contamination with sound shaft and housing surfaces | Assess a seal and bearing rebuild | The main support structure may remain suitable for replacement internal components. |
| Heavy scoring on a shaft journal | Compare a complete replacement with OEM limits | A new seal may not maintain the required contact on a damaged surface. |
| Cracked shell or housing | Assess complete assembly replacement | Internal parts do not restore structural integrity. |
| Excessive flange or shell wear | Measure and compare with the applicable OEM limits | Track guidance may remain compromised after a rebuild. |
| Deformed mounting block or attachment surface | Correct the mounting condition before installation | Misalignment can damage a replacement or rebuilt idler. |
| Recurring failure after a previous service | Inspect the wider undercarriage | The original cause may involve fitment, contamination, tension, chain wear, or alignment. |
The final scope should reflect the condition of both the idler and the surrounding system. Replacing one component does not reset the wear condition of the track chain, rollers, mounting hardware, or frame.
Servicing seals and bearing supports
Cleanliness starts before teardown. Remove packed soil and old grease from the outside of the idler and adjacent track-frame area. Use clean tools, protect disassembled components from abrasive material, and inspect the shaft, housing, support surfaces, and seal contact areas before ordering parts.
Floating metallic face seals require controlled installation. Their mating faces should remain clean and correctly positioned, while each O-ring should sit in its intended groove without twisting, pinching, or excessive stretching. The exact installation method, lubricant, and inspection requirements should come from the OEM or component-specific procedure.
Lubricant selection also depends on the design. Use the heavy-duty grease or lubricating oil specified for the exact front-idler application rather than choosing a product based only on a general “EP” label. Fill quantity, fill method, and post-service checks also require machine- and component-specific confirmation.
Generic online torque, clearance, or tension values are unsuitable substitutes for the current OEM documentation. Confirm the exact part numbers, dimensions, fastener requirements, and clearances for the machine model, serial number, and undercarriage configuration.
Fitment checks before ordering
Visually similar front idlers may differ in shaft dimensions, flange arrangement, mounting configuration, seal design, and internal bearing support. A machine family name alone may not identify the correct component, particularly where serial-range changes affect the undercarriage.
Record the machine model and serial number, idler position, existing markings, mounting details, and any dimensions requested by the OEM parts catalog. Use supplier cross-references as information to review, not as independent proof of fitment. The selected part should be matched to the exact application before installation.
KTSU’s undercarriage range includes more than 3,000 items, so identifying the correct component still depends on accurate machine and configuration information. Its product context can be reviewed through the front idler and undercarriage collection, while the OEM catalog remains the controlling reference for application and specifications.
KTSU Expert Views
From a manufacturer’s perspective, a front idler is best assessed as one part of the undercarriage system rather than as an isolated leaking component. Seal condition, shaft support, shell integrity, flange wear, mounting alignment, track-chain condition, and tension can influence one another. That is why a seal-only decision based on visible grease may overlook the wear mechanism that caused the failure.
KTSU’s manufacturing context includes a 70,000-square-meter facility in Kunshan and production methods such as NITTO friction welding and precision CNC machining. Those capabilities are relevant to component consistency, but they do not remove the need for machine-specific fitment checks or inspection against OEM limits.
For owners and technicians, the practical sequence is straightforward: identify the exact machine and serial range, document the symptom, inspect the complete idler, compare dimensions and clearances with the applicable manual, and then choose between internal service and complete replacement. A replacement part should be considered only when its configuration matches the machine and the surrounding undercarriage is suitable for continued service.
Safe inspection and replacement boundaries
Follow the current OEM procedure whenever the machine must be lifted, supported, or placed in a position for undercarriage inspection. Hydraulics are intended for positioning and lifting; rated mechanical stands or cribbing should provide support before anyone works beneath the machine.
Track-tension work requires particular caution. Releasing grease from a track adjuster is a high-pressure operation. Never stand in front of the grease relief point, because the idler can retract suddenly as tension releases. Use the specified tools, exclusion zone, and procedure for the exact machine.
If the inspection requires measurements, record them before cleaning away evidence of wear. If the result is outside the applicable OEM limit, or if the machine configuration remains uncertain, pause the installation decision and obtain qualified technical assistance.
Frequently Asked Questions
What is the usual process for deciding whether to rebuild a front idler?
Identify the machine and serial range, document the symptoms, clean and inspect the complete assembly, measure the relevant surfaces against OEM limits, and then select internal service or complete replacement.
When is a complete front idler more suitable than new seals and bearings?
A complete unit deserves consideration when the shaft is severely scored, the housing is cracked, the shell or flanges exceed applicable wear limits, or mounting areas are deformed.
How does a rebuild compare with replacing the whole idler?
A rebuild may suit a structurally sound idler with serviceable support surfaces, while complete replacement may better address structural, alignment, or extensive wear that internal parts cannot correct.
What risk comes from replacing only the seal?
A worn shaft support or damaged sealing surface may continue to create movement and leakage, so a seal-only repair may not address the underlying failure.
How long should a seal or bearing service take?
The time depends on the machine, access, idler design, contamination, component condition, tooling, and OEM procedure. A responsible estimate should follow inspection rather than a generic time promise.
