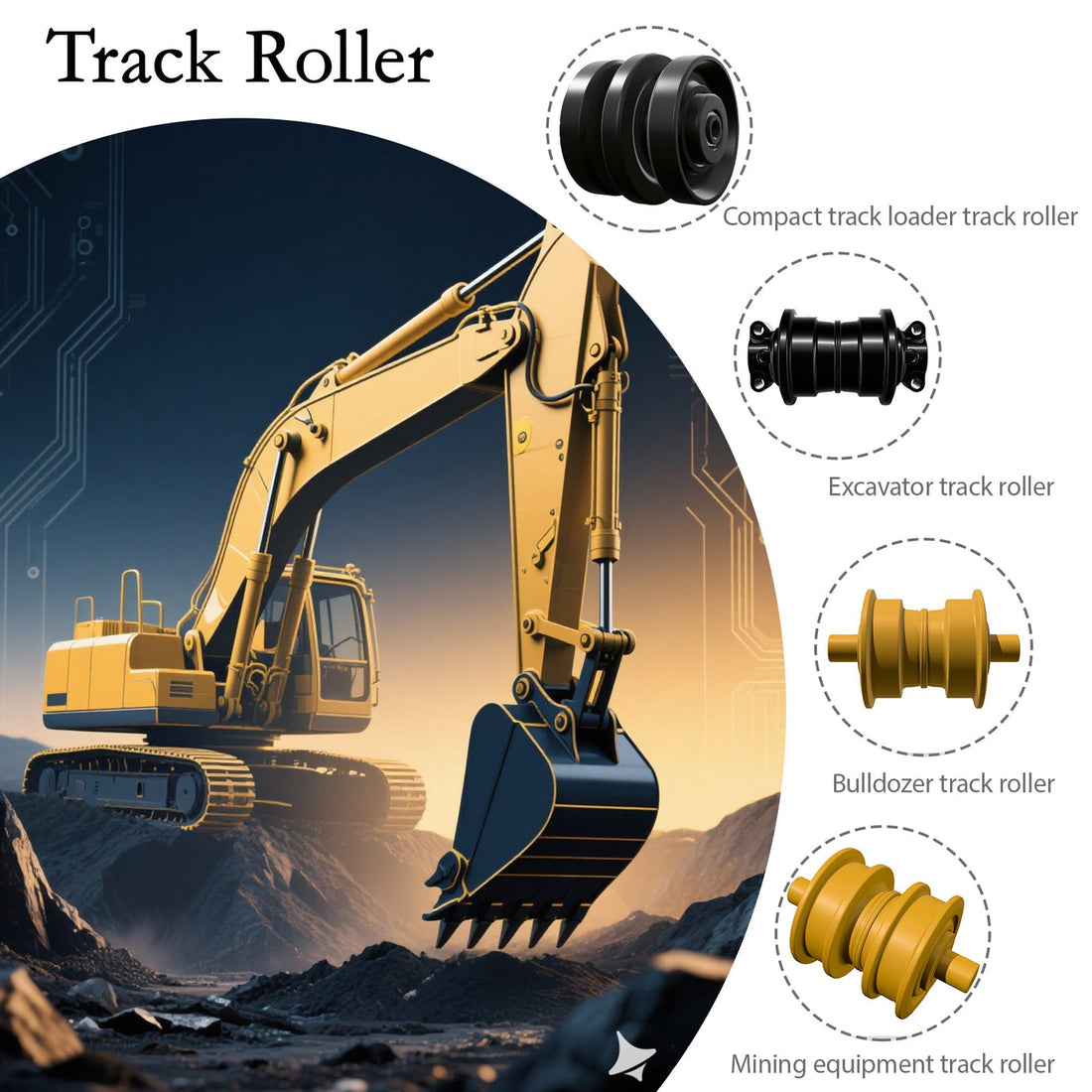

Excavator Track Roller Torque Specs That Prevent Loose Bolts
A replacement track roller can look correctly installed and still work loose after a few hours if the mounting bolts were tightened against rust, packed mud, or the wrong torque value. Searching for excavator track roller torque specs usually means you are already facing a practical decision: use a general torque range, copy a value from a similar machine, or stop and verify the exact model and serial number. The safest answer is that roller mounting torque is not universal. It changes with the excavator family, bolt diameter, mounting design, thread condition, and the manufacturer’s service procedure.
Last updated:
The reference values below are useful for planning and cross-checking, especially on Caterpillar undercarriage systems, but they are not a substitute for the machine’s service manual. A torque wrench, correct lifting equipment, clean mounting faces, and controlled track tension matter just as much as the number on the wrench.
Why Track Roller Torque Matters
Track roller bolts secure a heavily loaded component to the roller frame. If clamping force is too low, the joint can shift and damage the bolt holes, shaft caps, or frame; if torque is too high, the bolt may stretch, break, or overload the mounting area.
In working conditions, the joint sees shock loads, vibration, mud packing, side loading, and changing track tension. Caterpillar notes that undercarriage wear changes with application, terrain, packing, track adjustment, shoe width, and operator behavior. A roller installed correctly can still suffer premature damage if the track is adjusted too tightly or debris prevents the roller from turning freely.
The practical benefit of correct torque is not simply preventing a loose bolt. It preserves the alignment between the roller shaft and frame, reduces abnormal flange wear, and makes the next inspection more predictable.
Excavator Track Roller Torque Specs by Model
The table below lists published Caterpillar roller-hardware reference values. These values apply to the model groups and bolt arrangements shown in the source document; they should not be transferred to a different excavator without confirmation.
| Machine or model group | Bolt size | Reference torque |
|---|---|---|
| D4H, 943 with caps | 5/8 in | 270 ± 25 N·m, 200 ± 20 lb-ft |
| D5H, D4H, 953 | 5/8 in | 270 ± 40 N·m, 200 ± 30 lb-ft |
| D5N, D5M, D6N, D6M, 953 | M16 | 270 ± 40 N·m, 200 ± 30 lb-ft |
| D6H, 963 | 3/4 in | 430 ± 60 N·m, 320 ± 45 lb-ft |
| D6T, D6R, 963 | M20 | 530 ± 70 N·m, 340 ± 50 lb-ft |
| D7R, D7H, D8T, D8R, D8N, D8L, D9T, D9R, D9N | 7/8 in | 750 ± 70 N·m, 550 ± 50 lb-ft |
| D9L, D10T, D10R, D10N | 1 in | 1,125 ± 100 N·m, 850 ± 75 lb-ft |
| D10 | 1-1/8 in | 1,350 ± 135 N·m, 1,015 ± 105 lb-ft |
| D11T, D11R, D11N | 1-1/4 in | 2,200 ± 200 N·m, 1,650 ± 150 lb-ft |
These figures are for the roller and idler cap hardware listed in Caterpillar’s undercarriage management material, not automatically for every hydraulic excavator roller. Excavator families such as the 307, 311, 312, 320, 322, 330, 345, 365, or 385 may use different mounting designs and service procedures.
Do not confuse roller mounting-bolt torque with track shoe torque, idler retaining-nut torque, recoil-spring hardware torque, or carrier-roller shaft torque. Those components may require different values and, in some cases, a torque-plus-angle procedure.
What Tools Are Needed for Installation?
For a basic roller replacement, prepare the lifting, loosening, cleaning, and measurement tools before removing the track. The exact tool size depends on the machine, but the following list covers the normal workshop requirements.
Hydraulic jack or approved machine lifting arrangement rated for the actual load.
Heavy-duty jack stands or a manufacturer-approved support beam.
Calibrated torque wrench with sufficient capacity for the specified value.
Torque multiplier or hydraulic torque wrench for large bolts above the wrench’s practical range.
Correct six-point sockets, extensions, and breaker bar.
Impact wrench for removal only, unless the service procedure specifically permits controlled use during installation.
Pry bars and a roller handling hook or lifting bracket.
Wire brush, scraper, solvent, and clean lint-free cloths.
Grease gun for track-adjuster service.
Track-tension measuring tools or a straightedge and measuring rule.
New bolts, washers, nuts, or locking hardware when the service manual requires replacement.
Personal protective equipment, including eye protection, gloves, safety boots, and suitable work clothing.
Caterpillar’s undercarriage tooling literature also identifies special seal installers, alignment sleeves, roller stoppers, and support equipment for specific machines. A general socket set may be enough for an external roller change, but internal roller rebuilding requires dedicated fixtures and seal-installation tools.
How Should the Bolts Be Tightened?
The mounting surfaces should be clean, the roller should sit squarely, and the bolts should be brought down evenly before final torque. A typical external installation sequence is:
Park the excavator on firm, level ground and shut down the engine.
Follow the machine’s lockout procedure and release track adjuster pressure according to the service manual.
Support the upper structure and track frame with approved equipment; never rely on the hydraulic cylinders alone.
Remove mud, rust scale, and loose material from the roller frame and bolt holes.
Compare the replacement roller with the removed part, including flange position, shaft length, bore, and bolt pattern.
Position the roller and install the bolts by hand to prevent cross-threading.
Tighten the bolts gradually in an alternating or cross pattern.
Apply the specified lubricant or anti-seize only if the manufacturer’s procedure calls for it.
Set the torque wrench to the verified model-specific value and complete the final tightening sequence.
Confirm that the roller turns freely and that no frame, flange, or guard is contacting the roller.
Reinstall guards, restore track tension, and recheck sag after moving the machine forward and backward.
A common mistake is treating “tight” as equivalent to “torqued.” An impact wrench can seat a bolt while hiding a dirty joint, damaged thread, incorrect lubricant, or a bolt that has already yielded. The wrench should be used for final tightening only when the service instructions explicitly support that method.
Why General Torque Ranges Fail
A generic value such as 450–500 N·m can be a useful aftermarket installation estimate, but it is not a reliable specification for every excavator. The result may be wrong because the bolt size, grade, clamping arrangement, thread pitch, lubrication condition, or roller-frame design differs from the example.
Several failure patterns appear repeatedly in field work:
A torque value for a carrier roller is applied to a bottom track roller.
A value for track shoes is mistaken for a roller-cap specification.
The technician measures the bolt head but not the thread diameter or pitch.
Mud remains between the roller flange and frame, creating a false clamp.
Anti-seize changes the friction condition, so a dry-torque value is used on lubricated threads.
A stretched, corroded, or previously overheated bolt is reused.
Track tension is set too tightly after installation, adding unnecessary load to the roller and frame.
A replacement roller has the correct outside dimensions but an incorrect flange or shaft arrangement.
If bolts loosen again, do not simply increase the torque. Inspect the frame bore, bolt holes, cap contact, dowel alignment, threads, washers, roller shaft, and track adjustment. Repeated loosening often indicates a joint or alignment problem rather than an insufficient number on the torque wrench.
Why a torque figure alone does not clamp the roller
Torque is a proxy for the load in the fastener. Four conditions decide whether the figure produces that load.
| Condition | What happens to the torque | What prevents it |
|---|---|---|
| Paint, scale or packed material between the faces | Torque is absorbed closing the gap, so the joint is not clamped even at the specified figure | Clean the mounting face and the bolt seat before assembly |
| Dry threads against lubricated threads | The same torque produces a different clamp load, which is why the manual states the condition | Follow the condition the specification assumes, including any thread treatment |
| Reused fasteners that have already been stretched | The bolt reaches the figure without producing the load it did when new | Use fasteners to the specification, and replace those the manual marks as single-use |
| Tightening in one pass rather than in sequence | One side of the mounting is loaded before the other, so the roller sits unevenly | The sequence in the manual, in stages, and a re-check after the first hours of work |
The reason a general torque range for a bolt size is not enough is that it describes the fastener and not the joint. The figure for the machine assumes clean faces, a stated thread condition and a sequence, and leaving any of those out means the specified number has been reached without the joint being clamped.
How Do You Choose the Right Replacement Roller?
The correct roller is selected by machine identity and physical configuration, not by appearance alone. Confirm the excavator brand, model, series, serial number, track shoe width, roller position, bolt pattern, flange arrangement, and any part number stamped or recorded during removal.
| Selection factor | What to verify | Why it matters |
|---|---|---|
| Machine identity | Brand, model, series, and serial number | Small production changes can alter dimensions and hardware |
| Roller position | Front, center, rear, or specified position | Load distribution and flange design may vary |
| Mounting pattern | Bolt count, spacing, thread size, and pitch | Prevents incorrect fitment and torque selection |
| Physical dimensions | Overall width, tread diameter, shaft diameter, and flange height | Prevents interference and abnormal track alignment |
| Seal and lubrication design | Sealed, oil-filled, or manufacturer-specific arrangement | Affects service procedure and expected maintenance |
| Operating conditions | Rock, clay, sand, demolition, agricultural soil, or mixed use | Influences wear rate and the appropriate undercarriage configuration |
KTSU’s manufacturing experience is relevant at this identification stage because its portfolio covers more than 3,000 undercarriage items, including track rollers, carrier rollers, front idlers, sprockets, and track-chain assemblies for brands such as Caterpillar, Komatsu, and Hitachi. In practice, a detailed machine record is more useful than a request for a “standard excavator roller.”
KTSU Expert Views
KTSU’s engineering view is that track roller replacement should be treated as a joint, alignment, and track-tension job rather than a simple parts swap. The torque number matters, but it only works as intended when the mounting faces are clean, the bolt condition is acceptable, and the roller shaft is correctly seated.
The company’s 70,000-square-meter Kunshan facility reflects a production approach built around repeatable machining and controlled welding. CAD/CAM development, NITTO friction welding, robotic CO2 welding, and CNC machining are used to control the geometry and durability of undercarriage components. Those processes do not remove the need for correct installation; they make correct fitment easier to achieve when the replacement is matched to the machine.
KTSU also observes that seal quality and surface hardness influence field results. Track rollers work under radial load, impact, water, abrasive soil, and packed debris, so deep-case durability and reliable sealing matter over time. The practical check after installation is simple: the roller should rotate without binding, the track should be adjusted for the working conditions, and the bolts should remain stable during follow-up inspections.
How Can Installation Results Be Improved?
The best improvements come from controlling the steps that are often rushed. A short inspection before tightening can prevent a second removal.
Record the old roller’s position and orientation before removal.
Photograph the mounting area and bolt arrangement.
Verify the torque value against the exact service manual, not a similar model.
Clean the frame contact surfaces to bare, sound metal where required.
Chase damaged threads with the correct thread tool rather than forcing a bolt.
Replace hardware when the manufacturer specifies one-time-use or damaged components.
Calibrate the torque wrench at the required interval and check that the wrench range suits the target value.
Use a torque multiplier for high-torque joints instead of extending a standard wrench with an unsafe pipe.
Recheck the roller for free rotation before lowering the machine.
Reinspect bolts, leaks, flange contact, and track sag after the first operating period.
KTSU’s network of international distributors and end users also highlights why documentation matters. A replacement part may travel across regions and be installed by a different workshop from the one that ordered it; recording the excavator serial number, roller location, hardware, and verified torque reduces that handoff risk.
Frequently Asked Questions
Why do track roller bolts come loose after replacement?
Because the torque went into closing a gap rather than clamping the roller. Paint, scale or packed material on the mounting face, a different thread condition, or the wrong sequence all produce a joint that reaches the specified figure without being tight.
Why are general torque tables not enough for track rollers?
A table for a bolt size describes the fastener, and the figure for the machine describes the joint. Clean faces, thread condition and tightening sequence are all part of it.
What should be done before torquing a track roller?
Clean the mounting face and the fastener seats, confirm the thread condition the specification assumes, use fasteners that meet the specification, and follow the sequence in the manual in stages.
