Demolition Shear Attachments and Undercarriage Wear: How Side-Loading Forces Accelerate Track Failure
High-reach demolition shears change the operational dynamics of an excavator long before an operator notices performance decay. Heavy equipment undercarriages account for up to 50% of all excavator maintenance costs, and pairing a machine with a heavy shear attachment drastically accelerates component wear. While shears are indispensable for cutting structural steel and reinforced concrete, their immense mass, long reach, and crushing force subject the undercarriage to extreme lateral stress and torsional side-loading.
Last updated:
Understanding how these multi-directional forces degrade your tracks is essential to preventing premature component failure, eliminating costly equipment downtime, and protecting your fleet investment.
The Mechanics: How Demolition Shears Induce Asymmetrical Side-Loading
Unlike standard excavating or digging operations—where digging forces generally transfer longitudinally across the front or rear of the chassis—demolition shears introduce severe twisting and lateral forces that disrupt normal load distribution.
Extreme Torsional Stress and Levered Torque
Shears require massive hydraulic pressure to slice through structural steel. When the jaws bite down and twist to tear material free, that rotational torque travels down the boom, through the slewing ring, and directly into the track frame, forcing the undercarriage into continuous lateral rotation.
Shifted Center of Gravity and Asymmetrical Weight Distribution
Demolition work frequently occurs at high reach, steep elevation, or awkward off-center angles. Extending a heavy attachment off to the side shifts the machine’s center of gravity, concentrating immense static and dynamic weight onto the outer or inner edges of the track rollers, idlers, and link rails.
Abrasive Debris Environment and Material Packing
Demolition sites are densely littered with concrete dust, rebar fragments, jagged scrap metal, and crushed masonry. These abrasive materials get packed tightly into the track chain, sprockets, and idler pockets. When side-loading forces twist the track chain, this packed rubble acts as a heavy grinding compound, rapidly wearing down internal and external metal surfaces.
Critical Wear Points: Component Failure Matrix under Lateral Load
Side-loading specifically targets components designed primarily for linear tracking. The comparison below details how lateral thrust forces accelerate wear across key undercarriage parts:
| Undercarriage Component | Failure Mechanism Under Side-Loading | Measymmetrical Symptoms and Visual Signs |
| Track Link Rails & Roller Flanges | Lateral forces push the track links hard against the guide flanges of the rollers, creating intense metal-on-metal friction. | Severe scuffing, deep gouging on roller flanges, and one-sided rail polishing. |
| Track Guides & Guards | Continuous side-thrust forces the track link assembly to rub aggressively against guiding guards. | Accelerated wear on guard wear plates, structural thinning, and elevated risk of dethreading (throwing a track). |
| Track Pins and Bushings | Instead of pulling in a straight line, torsional side-loading twists the track chain, applying uneven axial stress across the pin-and-bushing joint. | Accelerated localized internal wear, pitch elongation ("track stretch"), and cracked or broken bushings. |
| Front Idlers and Sprockets | Misaligned forces push the track chain sideways across sprocket teeth and the flat running face of the idler. | Asymmetrical sprocket tooth wear, idler flange scuffing, abnormal tension spikes, and track misalignment. |
| Track Pads and Shoe Edges | Working on uneven demolition rubble or traveling over sharp curb edges loads only the outer pad edge rather than distributing weight across the full shoe. | Pad edge bending, corner cracking, accelerated pad wear, and shoe bolt loosening. |
Operational Best Practices to Eliminate Excessive Undercarriage Wear
While side-loading cannot be completely eliminated in high-reach demolition, operators and fleet managers can dramatically extend undercarriage service life by adopting targeted operational techniques and maintenance disciplines:
Work Over the Front Idlers, Not the Sides: Whenever possible, position the upper structure over the front idlers rather than reaching across the track sides. Undercarriage frames are structurally engineered to absorb longitudinal digging and cutting forces far better than lateral side-loads.
Reposition the Machine Instead of Over-Reaching: Avoid keeping the machine parked in a twisted stance while attempting extreme lateral cuts. Making gradual repositioning movements allows the operator to perform final cuts from a centered stance, significantly reducing twisting stress on the chassis.
Maintain Correct Track Tension for Severe Conditions: Demolition debris packs into undercarriage components, creating artificial over-tightening. Steel tracks that are too tight experience accelerated bushing wear, while loose tracks cause instability and derailment. Inspect tracks daily and adjust tension according to manufacturer specifications for severe applications.
Install Full-Length Track Guiding Guards: Standard rock guards are insufficient for heavy-duty demolition. Installing full-length track guards provides continuous support along the track frame, preventing the chain from twisting off the rollers during heavy side-loads.
Alternate Swing Direction and Working Angles: Operators naturally develop a preferred side to swing and work. Ensure operators vary machine positioning throughout the shift so one side of the undercarriage does not absorb all the punishing side-loads day after day.
Make Wider Turns and Avoid Counter-Rotation: Pivot turns and counter-rotation cause severe lateral thrust and accelerate wear on rollers and track lugs. Plan wide, gradual Y-turns on level ground whenever turning is required.
Travel Straight Up and Down Slopes: Continuous operation across a hillside forces the entire weight of the machine onto the downhill track rollers, idlers, and guide lugs. Always travel straight up or straight down slopes, keeping turns on level ground.
Limit High-Speed and Unnecessary Reverse Travel: Higher travel speeds multiply impact forces on rollers and links. Minimize non-productive high-speed travel and avoid excessive reverse travel, which increases wear on track bushings and sprocket teeth.
Keep Undercarriage Pockets Clean: Clean out packed mud, concrete dust, and debris at the end of every working day before the material hardens overnight, preventing excessive strain on track adjusters and tension seals.
Building a side-load evidence pack
A shear machine wears asymmetrically, and asymmetry is only useful as a diagnosis if it is recorded. Four readings taken at the same time, on the same surface and at the same temperature, turn a suspicion into a measurement that a workshop can act on.
| Record | Why it matters | What a left-right difference tells you |
|---|---|---|
| Track tension, left and right, checked cold | Tension is the only undercarriage figure an operator can change on site | A difference that comes back after re-tensioning points at the adjuster or at the structure, not at the setting |
| Flange thickness at a fixed clock position, front and rear roller | Gives a wear step that can be compared between sides | A consistently faster rate on the side the attachment swings toward is the signature of side loading |
| Idler and sprocket wear pattern | Shows whether the belt is running square in the frame | Uneven tooth or face wear on one side only points at alignment as well as load |
| Travel hours separated from stationary attachment hours | Separates wear caused by moving the machine from wear caused by working the shear | Where the stationary hours dominate, the wear is being created by the working position rather than by travel |
Take the four readings on the same day and repeat them at a fixed interval that suits the machine, not the convenience of the person taking them. A single set of figures is a snapshot. Two sets, separated by a known number of hours, give a rate, and a rate is what justifies changing the operating pattern. Where a left-right difference persists after tension and alignment have been brought back into specification, the asymmetry is coming from how the machine is used, and no undercarriage part will absorb that indefinitely.
The KTSU Engineering Edge: Manufacturing Resilience Against Lateral Stress
Mitigating asymmetric side-load wear requires both disciplined machine operation and high-integrity undercarriage components engineered to handle severe torsional loads.
At KTSU’s 70,000-square-meter precision manufacturing facility in Kunshan, structural durability is built directly into every component using advanced metallurgical and manufacturing disciplines:
CAD/CAM Design & Finite Element Analysis (FEA): Component geometries are digitally optimized to distribute multi-directional stress loads evenly across rail surfaces, roller flanges, and internal pin journals.
NITTO Friction Welding Technology: Delivers high-integrity, full-penetration structural bonds across link and roller assemblies, providing vastly superior resistance to torsional shear compared to conventional welding techniques.
Robotic CO2 Welding & CNC Machining: Guarantees absolute dimensional accuracy and perfect symmetrical alignment, minimizing premature flange contact under extreme side thrust.
Induction Heat Treatment & Deep Hardening: Advanced metallurgical heat treatment ensures deep, uniform surface hardness combined with high core toughness, dramatically slowing down abrasive wear in harsh demolition environments.

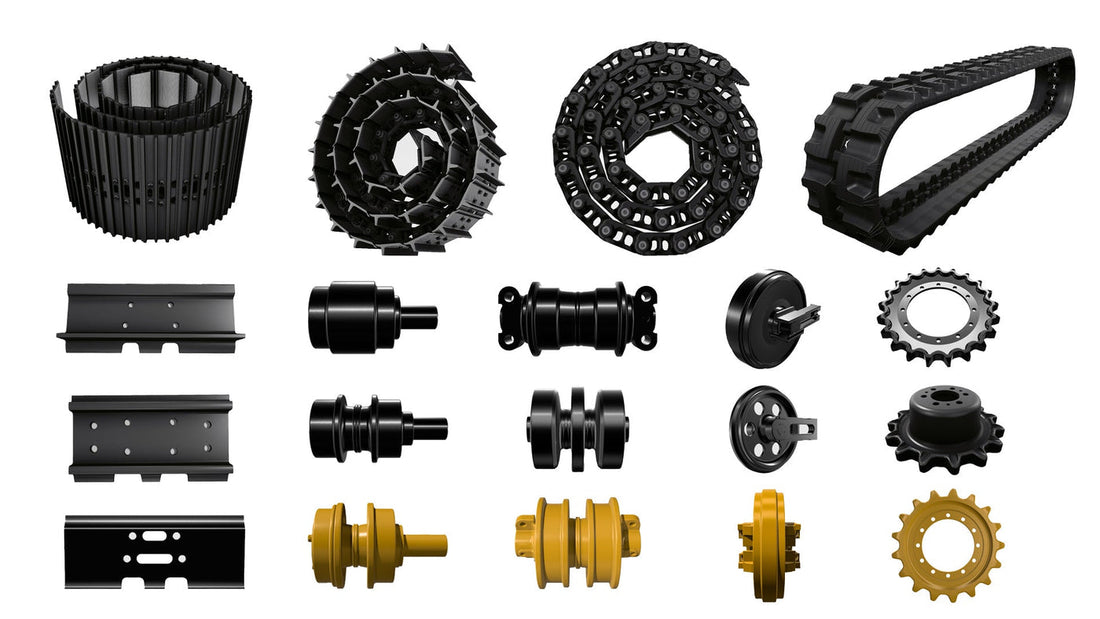

With a comprehensive portfolio spanning more than 3,000 undercarriage items—including track rollers, carrier rollers, front idlers, sprockets, track link assemblies, and heavy-duty track pads—KTSU manufactures components designed to maintain dimensional integrity under real-world, high-reach demolition stress.
Frequently Asked Questions
Why do shear attachments wear an undercarriage faster than a digging bucket?
A bucket loads the machine roughly symmetrically, in line with the frame. A shear at reach moves the centre of gravity to one side and then works there, so the load on the undercarriage is both heavier and one-sided. The other difference is time: a shear spends long periods stationary and loaded, which is exactly the condition that keeps pressure on one side of the track frame.
Which undercarriage parts fail first on a shear machine?
The parts that carry the lateral load rather than the ones that carry the weight: track chains and their links, roller flanges, and the idler and sprocket faces that keep the belt running square. Because the wear is uneven, the first failure often looks premature on one side of the machine while the other side is still serviceable.
Can a different travel pattern reduce side-loading wear?
It is one of the few variables an operator controls. Positioning so the attachment works over the machine rather than out to one side, and turning less often under load, both reduce the duration of the lateral load rather than the size of it. Record the travel hours separately from the stationary attachment hours so the effect of a change can actually be seen in the next set of readings.
How do I know whether the wear is from the shear or from the ground?
Compare the two sides. Ground conditions wear both sides at a similar rate, because the machine crosses the same material with both tracks. A shear wears the side it works toward, so an increasing left-right difference in flange thickness and chain tension points at the attachment rather than at the surface.
