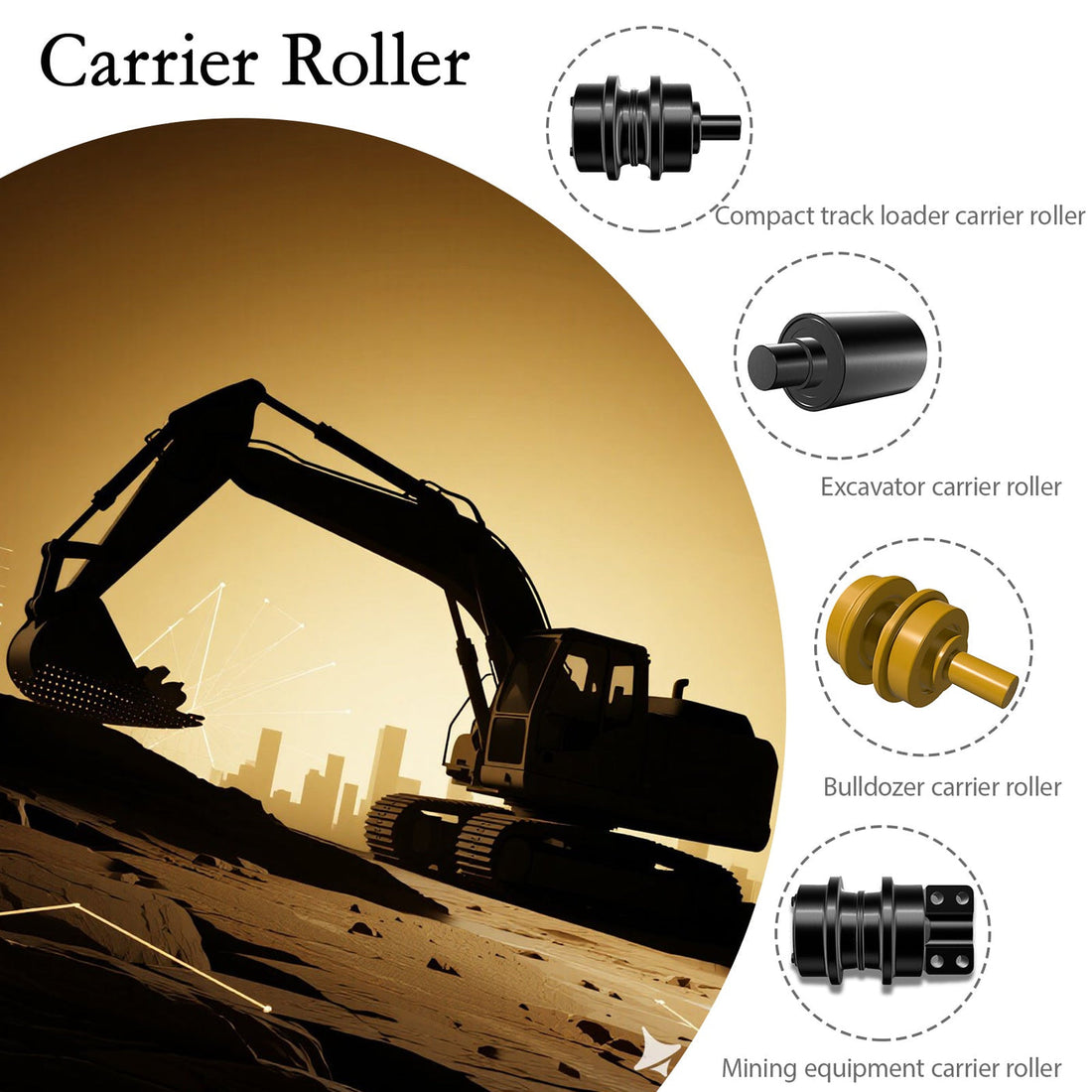

Carrier Roller Sizes and Fitment Guide by Machine
Share
A 20‑ton excavator returns from a carrier roller change with the upper track still sagging and a new seal already weeping. The replacement roller looked identical and bolted up without obvious issues, yet the mounting footprint was a few millimeters off and the flange style did not match the serial range. That small mismatch changes track line, increases side load on the links, and can turn a straightforward parts swap into a costly rework. Carrier roller sizes and fitment by machine depend on bracket pitch, bolt pattern, shaft and shell dimensions, and the condition of the surrounding undercarriage. This article shows how to verify those dimensions, why OEM part numbers matter, and where fitment commonly fails so you can order with more confidence.
Why carrier roller sizing matters for upper track support
The carrier roller, often called the top roller, supports the upper run of the track chain between the sprocket and front idler. It controls track line, limits excessive sag, and helps distribute load so the links and bushings wear in a balanced way. If the roller's mounting footprint, shaft diameter, or shell diameter is off, the track can run high or low, rub the frame or guards, and create uneven tension that shows up as rapid wear on the upper links and guide blocks.
Because the upper track is lighter than the bottom run, it is easy to treat carrier rollers as simple parts. In practice, they are highly model‑specific. A roller designed for a small mini excavator will not carry the chain weight or match the bracket spacing of a mid‑size machine, and a roller built for one serial range may not fit another without modification. Proper sizing protects the track, reduces noise, and supports longer undercarriage life when the rest of the system is within service limits.
Carrier roller specification checklist by tonnage class
Use this table as a starting point when comparing carrier rollers across different machine classes. Treat all dimensions as reference ranges only and verify exact values against the OEM parts manual for your specific model and serial number.
| Machine class | Typical tonnage range | Common shell diameter range | Typical shaft/bore range | Mounting style patterns | Serial-range sensitivity |
|---|---|---|---|---|---|
| Mini and compact excavators | 1 to 10 tons | 80 to 130 mm | 30 to 45 mm | 2-bolt or 4-bolt bracket, close spacing | High - PC60-1, PC60-3, PC60-6 differ |
| Mid-size utility excavators | 10 to 25 tons | 140 to 170 mm | 45 to 50 mm | 4-bolt bracket or flange mount, wider spacing | High - EX200-1, EX200-2/3, EX200-5 differ |
| Large mining and heavy excavators | 30+ tons | 170 to 220+ mm | 50 to 60+ mm | Heavy flange or dual-support, reinforced brackets | Very high - multiple design updates per model line |
How to use this table: Match your machine's tonnage class first, then compare your measured dimensions against the typical ranges. If your roller falls outside these ranges, double-check the OEM part number and serial-range specifications before ordering. Dimensions vary by manufacturer, model generation, and undercarriage configuration.
Key dimensional parameters that define carrier roller fitment
Carrier roller fitment is controlled by a small set of critical dimensions. These are the fields you should record, measure, or verify against the OEM parts manual before buying a replacement.
-
Mounting foot spacing and bracket pitch: the distance between the centers of the mounting bolts or brackets on the upper frame. This is often the first dimension that disqualifies a close but incorrect roller.
-
Bolt hole configuration: number of bolts, bolt diameter, and pattern such as 4‑bolt square, 2‑bolt bracket, or flange mount. Some machines use a flanged foot while others use a flat base with separate brackets.
-
Shaft diameter and bore: the diameter of the internal shaft and the bore that accepts the shaft or bushing. This affects load capacity and bearing life.
-
Shell or tread diameter and width: the outer diameter of the roller shell and the tread width that contacts the track link. Too narrow or too wide can change track line and increase edge wear.
-
Overall height and length: the envelope dimensions that determine whether the roller clears the frame, guards, and track links through full travel.
Manufacturers and aftermarket suppliers often publish dimension tables using labels such as A, B, C, D, and E for overall length, mounting width, bolt spacing, shell diameter, and bore. These tables are useful for cross‑reference, but they must be matched to your exact machine model and serial range, not just the model family.
Carrier rollers also differ in flange style: single‑flange, double‑flange, or flat with no flange, depending on the brand and machine. A Komatsu PC60 may use a different flange configuration than a Cat 320 of similar tonnage, and even within one brand, design updates can change the roller style between serial breaks.
Machine tonnage classes and typical carrier roller fitment patterns
While exact dimensions always depend on the OEM manual, carrier rollers tend to follow recognizable patterns by machine tonnage class. Understanding these patterns helps you narrow the search and spot obvious mismatches before measuring.
Mini and compact excavators from 1 to 10 tons
Mini and compact machines such as Kubota, Takeuchi, Yanmar, and small Cat and Komatsu models use lightweight carrier rollers with relatively small shell diameters and compact mounting brackets. Typical characteristics include smaller shaft diameters and bores, often in the 30 to 45 mm range for very small machines and increasing with tonnage, narrower tread widths, and shorter overall lengths to fit tight upper frames. Mounting is commonly 4‑bolt or 2‑bolt bracket with relatively close bolt spacing.
Because mini excavators often work in confined spaces and change attachments frequently, the upper track sees a lot of flex and side load. A carrier roller that is too large or mounted too high can cause the track to rub the frame or guards, while an undersized roller may deform or wear quickly under load. For mini machines, it is especially important to confirm the serial range when ordering. A PC60‑1, PC60‑3, and PC60‑6, for example, may use different carrier roller part numbers and dimensions even though they share the same model family.
Mid‑size utility excavators from 10 to 25 tons
This class includes popular machines such as Cat 320, Komatsu PC200, Hitachi EX200, and similar 20‑ton excavators used in general construction, utilities, and demolition. Carrier rollers here are heavier, with larger shell diameters often in the 140 to 170 mm range depending on model and design, heavier shafts and bores commonly around 47 to 50 mm for many 20‑ton class machines, and bracket or flange mounts with 4‑bolt patterns and wider foot spacing than mini machines.
Mid‑size excavators carry more track chain weight and operate under higher tension, so the carrier roller must support the upper run without excessive deflection. A roller that is physically similar but has the wrong bolt spacing or flange type can install with stress, leading to cracked brackets, distorted feet, or premature bearing failure. Within this class, serial breaks matter. For example, EX200‑1, EX200‑2/3, and EX200‑5 may use different carrier roller part numbers and dimensions, and PC200‑6, PC200‑8, and later variants can differ as well. Relying only on PC200 carrier roller without checking the exact model and serial range is a common source of wrong‑fit parts.
Large mining and heavy excavators above 30 tons
Machines such as Cat 330 and 345, Komatsu PC300 and PC400, Hitachi EX300 and EX400, and larger mining excavators use heavy‑duty carrier rollers designed for extreme loads and continuous operation. Typical features include larger shell diameters and wider treads to support heavy track chains, heavier shafts and bores often 50 mm and above depending on model, and dual‑support or reinforced flanged designs to handle high impact and tension.
In this class, the cost of a wrong fit is magnified. A misaligned carrier roller on a 40‑ton machine can quickly damage expensive track links, guide blocks, and frame brackets, and downtime is far more expensive than the part itself. Large excavators also tend to have more serial‑range variations and design updates over their production life, making OEM part‑number verification even more critical.
OEM part number verification and cross‑reference discipline
The single most reliable way to avoid carrier roller fitment errors is to start from the OEM part number for your exact machine model and serial number, then cross‑reference to an aftermarket equivalent. Model names alone are not enough.
Why model names are not enough
Even within the same model line, manufacturers change undercarriage components over time. A PC200‑6 built in one year may use a different carrier roller than a PC200‑8 built later, and a Cat 320D may differ from a 320D2 or 320D3. Serial‑range breaks can change mounting bolt pattern and spacing, flange type, shaft and bore dimensions, and overall envelope dimensions. Ordering by model name alone invites mismatches that may only become obvious during installation, after the machine is already partially disassembled.
How to use OEM part numbers correctly
-
Identify the exact machine model and serial number. Record the full model designation such as PC200‑8 or 320D2 and the serial number or prefix code from the machine data plate.
-
Look up the carrier roller in the OEM parts manual or online parts catalog. Use the official OEM publications system or a trusted OEM parts portal to find the part number for the upper carrier roller or rollers for your serial range.
-
Note any supersessions or revisions. OEM part numbers sometimes change due to design updates. The current part number may supersede an older one, and both should be noted for cross‑reference.
-
Cross‑reference to aftermarket numbers. Reputable aftermarket suppliers list OEM reference numbers alongside their own part numbers. Match the OEM number first, then confirm key dimensions such as bolt spacing, flange type, shaft diameter, and shell diameter against your existing roller or the OEM drawing.
-
Verify dimensions when in doubt. If the OEM number is unavailable or the roller has been replaced before, measure the critical dimensions: mounting foot spacing, bolt hole pattern, shaft diameter, shell diameter, and overall height and length. Compare these to the supplier's dimension table before ordering.
For example, a Komatsu PC60‑1 may use carrier roller part number 103‑30‑00011, while a PC60‑3/5/6 uses 203‑30‑53001, and a PC100‑6 uses 203‑30‑00231. Similarly, Hitachi EX200‑1, EX200‑2/3, and EX200‑5 each have different OEM reference numbers. These differences illustrate why PC60 carrier roller or EX200 top roller is not specific enough for a confident purchase.
Single roller replacement versus set replacement considerations
When one carrier roller fails, the natural question is whether to replace just that roller or the entire set. The answer depends on the condition of the rest of the undercarriage and the pattern of wear.
If the machine has relatively low undercarriage hours and the other carrier rollers show minimal play, seal leakage, or shell wear, replacing the single failed roller can be reasonable, provided the new roller matches the OEM dimensions and the mounting surfaces are sound. However, if the machine has high undercarriage hours and the remaining rollers show similar age, noise, or play, replacing them as a set can help maintain balanced upper track support and reduce the likelihood of another failure soon after.
A new carrier roller cannot correct a worn track chain, damaged guide blocks, or distorted frame brackets. If the upper track is stretched, the links are heavily worn, or the mounting brackets are bent, a new roller may fail quickly regardless of part quality. In such cases, the carrier roller replacement should be considered alongside a broader undercarriage inspection and, if needed, a more comprehensive repair plan.
Fitment limitations and failure patterns to expect
Even with careful part selection, carrier roller replacements can fall short if the surrounding system is worn or the installation environment is harsh. A common pattern is a new roller that begins to leak or develop play soon after installation because the track chain is stretched, the guide blocks are worn, or the frame brackets have shifted. In these cases, the roller is not defective so much as mismatched to the actual condition of the undercarriage.
Mud, clay, and abrasive debris packed around the upper frame can accelerate seal wear and force contaminants past the seals, especially if track tension is too high or the roller is misaligned. Repeated over‑tensioning increases side load on the carrier roller and can distort the mounting feet or crack brackets over time. Another frequent issue is assuming that a physically similar roller from a different serial range will work with minor modification. Drilling new holes or shimming brackets may appear to solve the problem, but it often introduces stress concentrations that lead to early failure.
These limitations do not mean replacement is futile, but they do set realistic expectations. A new carrier roller works best when the chain, links, guide blocks, and mounting surfaces are within OEM service limits, track tension is set per the manual, and the machine is inspected after a short break‑in period to confirm alignment and seal condition.
KTSU Expert Views
KTSU approaches carrier rollers as part of a complete undercarriage system rather than isolated components. From a manufacturing perspective, consistent dimensions across large production runs are critical so that bracket pitch, bolt patterns, and flange styles align with the frame geometry of different machine families. The company's Kunshan facility, covering about 70,000 square meters, supports this consistency through controlled processes and inspection at multiple stages.
Within a catalog of more than 3,000 undercarriage items, carrier rollers are produced using precision CNC machining for critical bores, shafts, and mounting surfaces, combined with heat treatment to support wear resistance in the shell and internal components. NITTO friction welding and robotic CO2 welding are used in related undercarriage manufacturing to maintain dimensional stability and joint integrity, which indirectly supports the reliability of components such as carrier rollers when they are integrated into a well‑matched undercarriage.
From a field perspective, KTSU engineers emphasize that a carrier roller's service life depends heavily on the condition of the track chain, guide blocks, and frame brackets, as well as correct track tension and alignment. Their guidance is to treat the carrier roller as a system component: verify OEM part numbers and dimensions, inspect the surrounding undercarriage before installation, and plan a short break‑in inspection to confirm that track line and seal condition remain stable under normal operating loads.
Product fit and next steps for verified carrier roller selection
KTSU manufactures replacement carrier rollers engineered to match OEM dimensional standards for major excavator brands, including Caterpillar, Komatsu, Hitachi, and others. The focus is on precise CNC machining, controlled heat treatment, and consistent dimensions so the roller aligns correctly with the frame brackets and track chain when the surrounding undercarriage is within service limits.
If you have confirmed your machine model, serial range, and OEM part number, you can compare those details against the specifications listed for each roller in the carrier roller collection. For machines with multiple serial breaks or uncertain history, it is prudent to share your model, serial number, and, if possible, photos or measurements of the existing roller with the KTSU team before ordering. This helps ensure the selected roller matches your machine's bracket pitch, bolt pattern, and flange configuration.
Frequently Asked Questions
What information do I need before ordering a carrier roller?
You need the exact machine model, serial number or prefix, and the OEM carrier roller part number from the official parts manual, plus key dimensions such as mounting foot spacing, bolt pattern, shaft diameter, and shell diameter to confirm fitment.
Can I use a carrier roller from a different model in the same tonnage class?
Not safely without verification. Machines in the same tonnage class can have different bracket pitches, flange types, and shaft sizes, so a roller that fits one model may not fit another even if they are both 20‑ton excavators.
How do I know if my carrier roller is the right size?
Compare the existing roller's mounting foot spacing, bolt pattern, shaft diameter, shell diameter, and overall dimensions to the OEM specification for your exact model and serial range, and treat any significant deviation as a likely mismatch.
Will a new carrier roller fix upper track sag?
A new roller can restore proper support if the sag was caused by a worn or failed roller and the rest of the undercarriage is within limits, but it will not correct sag caused by a stretched chain, worn links, or incorrect track tension.
How soon should I inspect a new carrier roller after installation?
Plan an initial inspection after a short break‑in period under normal operating conditions to check track line, seal condition, and any unusual noise or heat, then adjust track tension or alignment per the OEM manual if needed.
