Can Pin and Bushing Turning Double Track Chain Life?

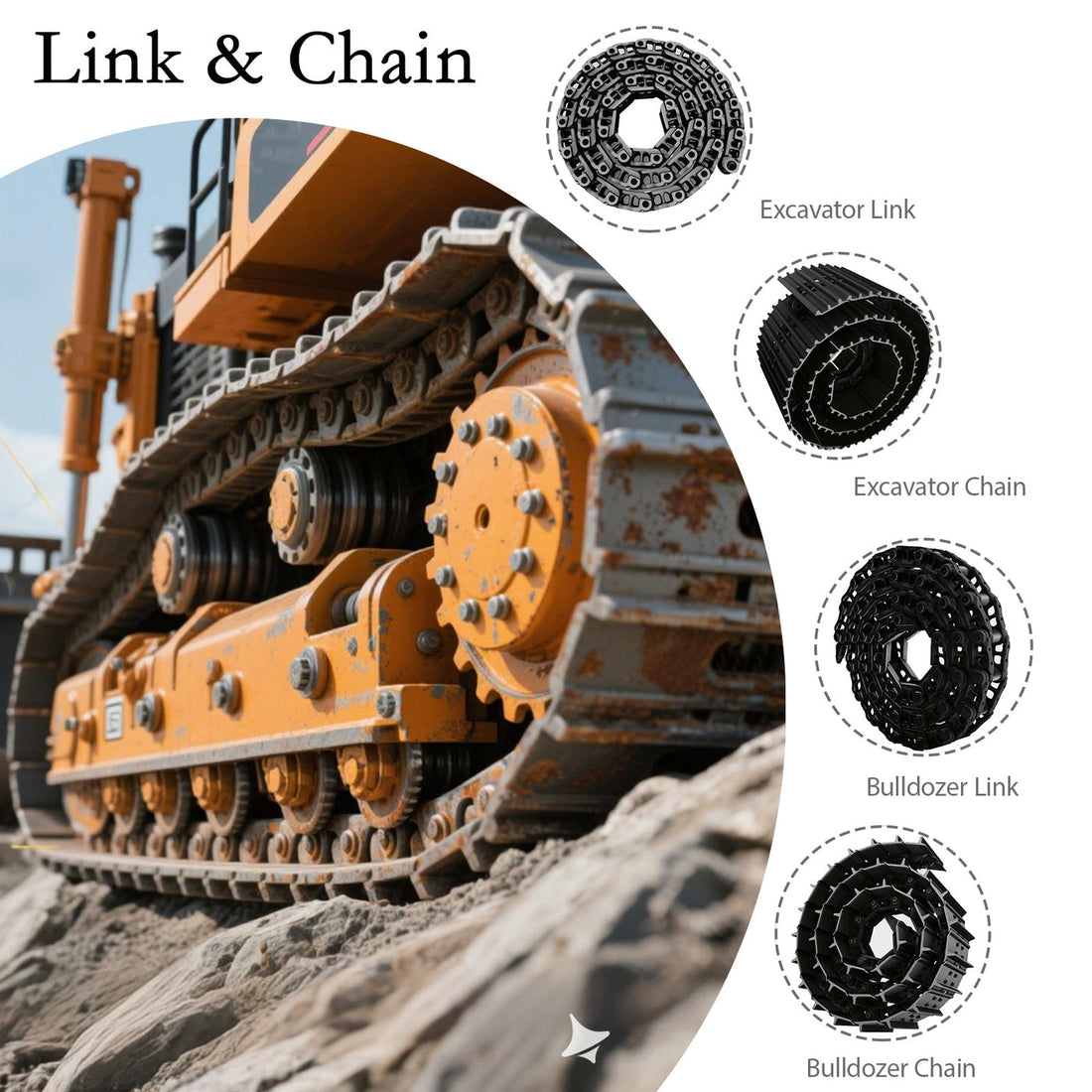

A track chain can look ready for replacement long before every component has reached its useful limit. When sprocket contact has worn one side of the bushings and internal clearance has begun to alter track pitch, the choice is rarely as simple as “run it” or “replace it.” A professional pin and bushing turn can recover usable wear surface—but only when the chain, seals, links, and sprockets still justify the work.
Last updated:
The phrase “double track chain lifespan” is directionally useful, not a promise. Turning can unlock a second service interval from the opposite wear surfaces, yet abrasive ground, reverse travel, seal condition, machine loading, and the quality of the turning process decide whether that theoretical value becomes a sound economic result.
track pin and bushing turning guide
| Wear stage | Before pin and bushing turning | After professional turning |
|---|---|---|
| External bushing contact | The sprocket repeatedly loads one sector of the bushing, creating a worn flat or reduced diameter | The bushing is rotated 180 degrees, moving a less-worn outer surface into the sprocket contact zone |
| Internal pin-and-bushing contact | Repeated articulation concentrates wear in the primary loaded area and increases clearance over time | The pin is repositioned according to chain design so less-worn contact surfaces can work under load |
| Track pitch effect | Wear increases effective pitch and can prevent accurate sprocket seating | Restored contact geometry can reduce pitch-related mismatch, within the limits of remaining component wear |
What Does a Pin and Bushing Turn Restore?
A pin and bushing turn repositions worn track-chain components so less-used surfaces take over the critical contact zones. Its main purpose is to restore more normal sprocket engagement and delay the point at which the chain’s worn pitch begins accelerating damage elsewhere.
On a sealed and lubricated track chain, the bushing’s outside repeatedly contacts the sprocket teeth, while the pin and bushing also work internally as the track articulates. That loading is not evenly distributed around the full circumference. In normal forward travel, a recurring contact sector takes most of the punishment; the bushing develops a worn flat, and clearance at the pin-and-bushing interface contributes to apparent chain “stretch.”
The practical value is not cosmetic. A chain with excessive pitch mismatch may climb on sprocket teeth rather than seat correctly, increasing noise, shock loading, and wear on segments. Turning aims to reset the relationship before that mismatch becomes expensive across the whole undercarriage.
Why Does Rotating the Components Create New Wear Surfaces?
The mechanism is straightforward: the chain is disassembled with a hydraulic press, the bushing is rotated 180 degrees, and the pin is repositioned end-for-end where the track design permits. The previously unloaded external bushing surface is then placed against the sprocket’s primary working area.
The important distinction is that a pin and bushing turn does not add metal or return a chain to new dimensions. It redistributes use of the original material. That is why timing matters more than optimism: perform the service while sufficient hardened material, seal integrity, and link-bore retention remain.
For a wet turn on a sealed and lubricated track chain, the technician must restore the lubrication system correctly. This usually involves cleaning the components, checking the reservoir and plug arrangement, vacuum-filling the pin with the appropriate oil, and confirming that the seal system can retain it. A dry or grease turn may be appropriate for a non-lubricated design, but treating a compromised lubricated chain as if it were a simple dry chain can create leaks and a short-lived result.
When Is Pin and Bushing Turning Economically Sensible?
The strongest case is a chain with concentrated bushing wear but still-serviceable links, rollers, idlers, and sprockets. The service can be particularly rational when it aligns with planned downtime and avoids replacing a full chain assembly before its other components have earned their operating hours.
| Condition | Pin and bushing turn | Replace pins and bushings | Replace complete track chain |
|---|---|---|---|
| Bushing wear concentrated on one side | Often a strong candidate | Possible, but may discard usable material | Usually premature |
| Seals and lubrication remain sound | A wet turn may be suitable | Consider if wear limits are near | Not normally required for this factor alone |
| Link bores are worn or loose | Limited value | May not correct the underlying issue | Often the more durable route |
| Sprocket teeth are badly hooked | Turn alone is a poor choice | Replace matched components as needed | May be necessary within a broader repair |
| Machine needs predictable long-term uptime | Depends on inspection results | Often more predictable | Most predictable, but with the highest immediate cost |
A useful decision is based on cost per productive hour, not only the invoice for today’s repair. Compare the full service cost—including transport, press work, seals, oil, labor, machine downtime, and any sprocket work—with the remaining expected life of the entire undercarriage.
KTSU operates from a 70,000-square-meter manufacturing facility in Kunshan, where undercarriage components are evaluated as a connected system rather than isolated parts. That perspective matters because a turning decision is only economical when the chain is not being asked to compensate for worn rollers, misaligned idlers, or sprockets already beyond their practical service point.
Which Machines and Working Conditions Benefit Most?
Dozers often present the clearest pin and bushing turn opportunity because their sprockets impose repetitive loading on the same outer bushing area. High-use machines working in controlled earthmoving conditions can show a defined wear pattern that makes the unused surface genuinely valuable.
However, hours alone are not a decision rule. A machine accumulating modest hours in sharp rock, demolition debris, wet abrasive fines, or constant slope work may wear far faster than one operating longer in ordinary soil. Extended reverse operation also shifts loading patterns and can make the “fresh” area less fresh than inspection assumptions suggest.
Operators sometimes request a turn immediately after noticing loose track or rattling. That may be too late. A better habit is periodic undercarriage measurement: track pitch, bushing outside diameter, pin-and-bushing clearance, link height, roller condition, sprocket profile, and oil leakage should be reviewed together. The goal is to schedule the turn during the useful middle stage of wear, not after a failure has forced a decision.
Why Can a Pin and Bushing Turn Disappoint?
A turn cannot repair every source of track-chain deterioration. If the internal oil reservoir cannot be refilled, seals are damaged, pin surfaces are deeply scored, link bores have lost interference fit, or the bushing wall is already too thin, rotating the components may only postpone a larger repair briefly.
The expectation gap often comes from treating the service as a universal life-doubling procedure. It works best when the old working face is worn and the opposite face remains structurally sound. It works poorly when wear is broad, irregular, abrasive, or already accompanied by cracked bushings and sprocket damage.
Pressing work also has risks. Improper tooling, poor alignment, or inadequate cleaning can damage link bores, distort parts, compromise seals, or create inconsistent assembly retention. A chain that begins leaking shortly after a wet turn is not merely inconvenient; it can rapidly lose the lubrication that protects the internal pin-and-bushing surfaces.
Do not overlook component mismatch. Installing a newly turned chain against severely hooked sprockets can immediately attack the renewed bushing surface. In that situation, delaying segment or sprocket replacement may turn a cost-saving strategy into repeat downtime.
The conditions that decide whether a turn pays
A pin and bushing turn restores the internal wear surfaces. Four conditions decide whether that restoration is worth having.
| Condition | Why it matters | Where it disappoints |
|---|---|---|
| How far the internal wear has gone | Turning presents unworn surfaces to the load, which only helps while there is material left to present | Past the window, the new surfaces meet a pitch that has already changed |
| The condition of the external surfaces and the rails | They are not restored by the work | A chain with worn rails returns to service with its external limit closer than the internal one |
| Whether the sprocket has worn to match the chain | The turned chain has to engage the drive that is on the machine | A turned chain on a worn sprocket wears its new surfaces to the same old pattern |
| Whether the service can be done as specified | The clearances and the seals have to be restored as part of the work | A turn done without the specified clearances gives a shorter second interval than the first |
That is why the honest answer to whether a turn can double chain life is that it depends on where in the chain life the work is done. Done at the right point, with the sprocket measured and the external surfaces still sound, the second interval is real. Done late, it converts a chain replacement into a delay and adds the cost of the service to it.
How Should the Service Be Planned?
A professional pin and bushing turning program begins with measurement, not disassembly. Inspectors should compare actual wear against the equipment manufacturer’s limits and examine whether the complete undercarriage can reasonably outlast the next expected service period.
The work sequence commonly includes:
Measuring pitch, bushing diameter, sprocket condition, seal leakage, and link-bore condition
Removing the track assembly safely and using a suitable hydraulic press to separate components
Cleaning parts and rejecting pins, bushings, seals, or links that fail inspection
Rotating bushings and repositioning pins according to the chain design
Refilling and sealing lubricated systems when a wet turn is specified
Reassembling with verified press fit, correct alignment, and appropriate track tension
Inspecting sprockets, segments, rollers, and idlers before returning the machine to service
KTSU’s production environment combines CAD/CAM development, precision CNC machining, NITTO friction welding, and robotic CO2 welding. Those manufacturing controls reinforce a practical service lesson: track-chain performance depends heavily on dimensional consistency, hardened wear surfaces, and sealing accuracy. Field turning should be held to the same disciplined approach rather than treated as a rough repair performed only because the machine is overdue.
KTSU Expert Views
A pin and bushing turn should be viewed as a wear-management decision, not a substitute for undercarriage planning. The right question is not “Can this chain be turned?” but “Will a turned chain remain the sensible limiting component after the rest of the system is considered?” That distinction avoids spending labor on a chain whose sprockets, link bores, or lubricated joints are already approaching their own limits.
In practice, the most reliable candidates have measurable but localized external bushing wear, stable link retention, and no active evidence of lubrication failure. Their owners have also kept track tension within specification and avoided allowing debris to pack continuously around the undercarriage. These operating habits affect the value recovered from any service.
KTSU’s range extends from 1-ton to 250-ton-class track-driven machines in North America, reflecting how much the decision changes with machine size and application. A compact excavator working intermittently may prioritize low downtime and simple replacement. A large dozer with a planned maintenance window may justify detailed measurement, wet-turn procedures, and matched sprocket work. Neither route is automatically better; the useful answer comes from the wear pattern and the operating plan.
How Can Operators Preserve the Second Service Interval?
The second interval after turning is protected by the same habits that should have protected the first. Correct track tension, routine cleaning, measured inspection, and timely attention to oil leakage all matter because a turned bushing still faces the same loads and abrasive environment.
Avoid judging success in the first few shifts. Operators sometimes expect immediate smoothness from a service that has also revealed other worn components. Track performance should be monitored after return to work, especially for noise, hot joints, leakage, abnormal sprocket contact, and uneven travel.
If the machine’s work changes substantially—from soil grading to demolition, for example—reassess the maintenance interval rather than following an old hour-based schedule. Ground conditions and operating style can change wear behavior faster than the hour meter suggests.
Frequently Asked Questions
What does a pin and bushing turn restore?
It presents unworn surfaces of the pins and bushings to the contact with the sprocket, so the internal wear that has developed is redistributed rather than continued. Everything outside the joint, including the rails and the drive interface, is unchanged.
Can pin and bushing turning really double track chain life?
It can, where the work is done inside the turn window and the external surfaces and the sprocket are sound. Done after the window, the second interval is much shorter and the service adds cost to a chain that was already at its limit.
Which machines benefit most from a pin and bushing turn?
Machines whose internal joint wear reaches its limit before the external surfaces, which is typical on machines doing heavy drawbar or turning work on ground that is not heavily abrasive. Where the rails wear first, the turn has less to offer.
Why can a pin and bushing turn disappoint?
Usually because it was done late, or because the specifed clearances and seals were not restored as part of the work, or because the sprocket was already worn to the old chain. All three are decided before the service rather than during it.
